Your Windows 11-equipped PC optimized for maximum performance right from the box. After time, you may encounter performance issues such as system slowdowns, application crashes, or unexpected errors. In these cases, the culprit might be your device’s random-access memory (RAM), a key component of your PC’s operations. Here’s why you might need to use Windows Memory Diagnostic tools and how you can access them so your device won’t miss a beat. device won’t miss a beat.

What is random-access memory?

Random-access memory (RAM) is a type of computer memory that stores data temporarily and allows fast access to it. When you open programs or files, the data that they use are loaded into the RAM for quick access by the central processing unit (CPU). An essential part of your device’s performance, RAM is like a workspace that your computer uses to work with more information at the same time, such as running multiple programs or tabs. When you close a program or operation, RAM no longer holds that data and resets, allowing you to use that space for something else.

Credit: Image created with AI

Issues with RAM and memory

When your PC’s RAM isn’t performing well on memory-intensive applications, you’ll notice because webpages and apps will load slowly. Here are examples that indicate when RAM issues might affect your Windows 11 device:

• Sluggish performance: If your device is taking longer to respond or open applications, it could be due to insufficient RAM.
• Frequent freezing or crashing: When running multiple applications simultaneously, your system might freeze or crash due to inadequate RAM capacity.
• Error messages: Messages indicating memory-related issues like «low memory» or «out of memory» can alert you to potential RAM problems.

Using the Windows Memory Diagnostic Tool

The Windows Memory Diagnostic tool is a built-in feature available in the latest Windows 11 operating systems. It can conduct a RAM test to detect possible problems with your PC’s memory.

Because chances are that you won’t need to use this tool frequently, it can be tricky to find. Here are multiple ways that you can access this tool on your PC:

• In the Start menu’s search box, enter windows memory. The Windows Memory Diagnostic app will appear as the first result.
• On your keyboard, select the Windows logo key + R to open the Run application function. Enter mdsched to open the Windows Memory Diagnostic app.
• In the Settings menu, enter memory in the search box in the left panel. Select Diagnose your computer’s memory problems to access the Windows Memory Diagnostic app.

Running the Windows Memory Diagnostic app

Before you run Windows Memory Diagnostic app, be sure to save all the content you’re working on and exit out of any currently running programs. Once that’s set, begin by selecting Restart now and check for problems (recommended).

Your PC’s system will reboot and start the Windows Memory Diagnostic tool, performing a thorough analysis of the computer’s RAM for issues. Once the test is complete, the system will restart, displaying the test results in the notification area.

More ways to enhance RAM performance

Windows uses this diagnostic tool to optimize memory usage and enhance performance, but users can further leverage Windows tools to help get the very best performance out of their devices. Users can:

• Optimize RAM usage: Windows comes with built-in features to manage RAM efficiently. Explore the settings to tweak the RAM usage as per your requirements.
• Monitor resource consumption: Use Task Manager to keep an eye on memory usage. Identify memory-hungry apps and manage them accordingly for smoother performance.

If you find that your PC isn’t performing to as-new standards, these RAM tools can help. Regularly check your device’s RAM health using Windows Memory Diagnostic and leverage the RAM tools available. And if you’re looking for your next favorite Windows 11 device, see which Surface device could be right for you.

If your computer has been experiencing random crashes, general instability, or the dreaded blue screen of death, faulty RAM might be the cause. Windows 10 includes a built-in diagnostic tool specifically designed to detect memory problems so you can find out relatively quickly!

In this step-by-step guide to checking RAM for errors in Windows 10, we’ll walk you through the process of how to run Windows Memory Diagnostics Tool, interpret its results, and take appropriate action if problems are detected. Whether you’re experiencing issues or just want to perform preventative maintenance, this article will help you ensure your system’s memory is functioning properly.

What is the Windows Memory Diagnostics Tool?

The Windows Memory Diagnostics Tool is how to check for faulty RAM in Windows 10 without third-party software. Its primary purpose is to identify hardware issues within your system’s memory modules that could lead to system instability, data corruption, or application crashes. By methodically testing memory cells and their ability to store and retrieve data correctly, this tool helps pinpoint whether your RAM is the source of system problems you may be experiencing.

How it works and what it checks for

The Windows Memory Diagnostics Tool works by writing various test patterns to every memory location and then reading those patterns back to verify they match what was written. This process checks for several types of memory issues:

• Stuck bits (memory cells that are stuck in either a 0 or 1 state)
• Adjacent bit interference (where writing to one memory location affects nearby locations)
• Pattern sensitivity (where specific patterns of data cause errors)
• Timing issues (problems with memory refresh rates)
• Memory addressing errors (failures in properly accessing specific memory locations)

The tool runs through multiple test passes, with each pass becoming progressively more thorough. Basic tests can be completed in minutes, while comprehensive scans may take several hours depending on the amount of RAM installed in your system.

When to use the Memory Diagnostics Tool in Windows

You should consider running the Windows Memory Diagnostics Tool in the following situations:

• After experiencing blue screen of death (BSOD) errors, especially those with error codes like MEMORY_MANAGEMENT, PAGE_FAULT_IN_NONPAGED_AREA, or IRQL_NOT_LESS_OR_EQUAL
• When your system crashes or freezes randomly with no clear pattern
• If applications terminate unexpectedly without warning
• When you notice data corruption in files that were previously working correctly
• After installing new RAM modules to verify they’re functioning properly
• As part of regular system maintenance, particularly for systems that run critical applications
• If you’re experiencing unusual behavior like system slowdowns, graphical glitches, or frequent application errors

Running this diagnostic tool as a first troubleshooting step can save considerable time, as memory issues can manifest in ways that mimic software problems or other hardware failures.

How to run the Memory Diagnostics Tool in Windows 10

Method 1: Using the Start Menu

The most straightforward way to access the Windows Memory Diagnostics Tool is through the Start menu. Here’s how to do it:

Launch the tool via the Start menu

1. Click on the Windows Start button in the lower-left corner of your screen.
2. Type “Memory Diagnostics” in the search box.
3. From the search results, click on “Windows Memory Diagnostic” to open the tool.
4. A dialog box will appear with two options for running the diagnostic test.

Restarting immediately or running the test later

When you launch the Windows Memory Diagnostics Tool, you’ll be presented with two options:

• Restart now and check for problems (recommended): Select this option if you’re ready to run the test immediately. Save and close all open applications before selecting this option, as your computer will restart without further warning.
• Check for problems the next time I start my computer: Choose this option if you want to continue working and have the memory test run automatically the next time you restart your computer.

After selecting either option, Windows will restart, and the Memory Diagnostics Tool will run before Windows loads, displaying a blue screen with white text that shows the progress of the test.

Method 2: Using Command Prompt

For users who prefer command-line interfaces or need to run the tool from a script, the Command Prompt method offers additional flexibility.

Using mdsched.exe

1. Press Windows key + R to open the Run dialog.
2. Type cmd and press Enter (or press Ctrl+Shift+Enter for administrative privileges).
3. At the Command Prompt, type mdsched.exe and press Enter.
4. The same Windows Memory Diagnostics Tool dialog box will appear with the two restart options as described in Method 1.

Alternatively, you can use the following commands for specific actions:

• To run the diagnostic immediately: mdsched.exe /r
• To schedule the diagnostic for the next reboot: mdsched.exe /s

Options available after restart

Once your computer restarts and the Windows Memory Diagnostics Tool begins running, you’ll see a blue screen interface with the following information and options:

• Status information: Displays the current test pass, the test being performed, and the overall completion status.
• F1 key: Press this to access additional options for the test.
• F10 key: Press this to exit the diagnostic tool and continue booting normally.

When you press F1, you can customize your test with these options:

• Test Mix: Choose between Basic, Standard, or Extended test sequences.
• Cache: Toggle the cache on or off during testing.
• Pass Count: Set how many times the test sequence should repeat.

The Standard test mix is selected by default and is sufficient for most troubleshooting scenarios. The Extended mix performs additional tests but takes significantly longer to complete.

Understanding Memory Diagnostics test results

After the Windows Memory Diagnostics Tool completes its analysis, you’ll need to know where to find the results and how to interpret them. The tool doesn’t prominently display a detailed report upon completion, but Windows does record the outcome where you can access it.

How to access the diagnostic report after the test completes

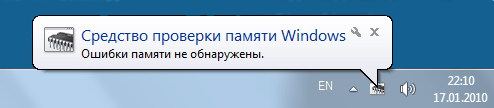

When the memory diagnostic test finishes, your computer will automatically restart and boot into Windows normally. Unlike many troubleshooting tools, the Memory Diagnostics Tool doesn’t automatically display a results window. Instead, a brief notification may appear in the system tray (notification area) shortly after you log in, indicating whether any problems were found.

If you miss this notification or want to see more detailed information, you’ll need to check the Windows Event Viewer.

Using Event Viewer to find test results

1. Right-click on the Start button and select “Event Viewer” from the menu. Alternatively, press Windows key + R, type eventvwr.msc, and press Enter.
2. In Event Viewer, navigate to the following location in the left sidebar:
3. Windows Logs > System
4. In the right panel, click on “Filter Current Log” (or use the “Find” feature).
5. In the filter dialog, enter “MemoryDiagnostics-Results” in the “Event sources” field and click OK.

The Event Viewer will now display only the memory diagnostic test results. Double-click on the most recent event to view detailed information.

Interpreting results (no errors vs. detected issues)

The Event Viewer entry will contain one of two general outcomes:

No errors detected

If your memory is functioning properly, you’ll see a message similar to:

The Windows Memory Diagnostic tested the computer’s memory and detected no errors.

This indicates that your RAM passed all the tests successfully, and memory issues are likely not the cause of any system problems you might be experiencing. If you’re still having system stability issues, you may need to investigate other potential causes such as storage device problems, overheating, driver conflicts, or software issues.

Detected issues

If problems are found, the message will indicate that hardware errors were detected:

The Windows Memory Diagnostic tested the computer’s memory and detected hardware errors.

In this case, the report may include additional details such as:

• The specific memory module with the issue (if your system has multiple RAM sticks)
• The type of error detected (e.g., stuck bits, addressing errors)
• The memory address range where errors occurred
• Recommendations for further action

If errors are detected, this strongly suggests that one or more of your RAM modules are faulty and should be replaced. In systems with multiple RAM sticks, you may need to test each module individually to identify which one is problematic.

It’s important to note that even a single memory error is cause for concern. Unlike some hardware issues that might cause intermittent problems, memory errors typically worsen over time and can lead to data corruption, so you should always address them quickly.

What to do if memory errors are found

If the Windows Memory Diagnostics Tool detects errors in your RAM, don’t panic. While faulty memory can cause significant system instability, the issue is often fixable with some straightforward steps. Here are common steps to take if your test results indicate memory problems:

Reseating RAM modules

Sometimes, memory errors occur not because the RAM is defective, but because it’s not properly seated in its slot. Dust or oxidation on the contacts can also cause connection issues that appear as memory errors.

1. Power down your computer completely and unplug all cables.
2. Ground yourself by touching a metal surface or using an anti-static wrist strap to prevent static electricity damage.
3. Open your computer case following the manufacturer’s instructions.
4. Locate the RAM modules on the motherboard (they’re typically long, thin components held by clips on both ends).
5. Release the retention clips at each end of the RAM module.
6. Carefully remove each memory module by pulling it straight up out of its slot.
7. Inspect the gold contacts at the bottom of each module for dust or corrosion. If present, gently clean them with a soft, lint-free cloth. For stubborn oxidation, use isopropyl alcohol (90% or higher) and allow it to dry completely.
8. Inspect the RAM slots on the motherboard for dust or debris, and if necessary, use compressed air to clean them.
9. Firmly reinsert each module into its slot, applying even pressure until the retention clips snap into place.
10. Close the computer case, reconnect all cables, and power on the system.
11. Run the Windows Memory Diagnostics Tool again to see if reseating resolved the issue.

Running additional memory tests (e.g., MemTest86)

While the Windows Memory Diagnostics Tool is useful, it may not detect all types of memory issues. For more thorough testing, consider using MemTest86, which is widely regarded as the gold standard for memory testing:

1. Download MemTest86 from the official website (it’s available as a free download).
2. Create a bootable USB drive using the tool provided in the download.
3. Boot your computer from the USB drive by changing the boot order in your BIOS/UEFI settings.
4. Let MemTest86 run for several complete passes (at least 4 passes are recommended, which may take several hours).
5. Monitor for errors during the test. Even a single error indicates a problem with your RAM.

MemTest86 provides more detailed information about errors, including the specific memory addresses where failures occur, which can help identify whether particular RAM modules are at fault.

Replacing faulty RAM

If reseating doesn’t solve the problem and additional testing confirms memory errors, it’s time to replace the faulty RAM:

1. Identify which RAM module(s) are faulty if you have multiple sticks:
   • If possible, test each module individually by installing one at a time and running the diagnostics.
   • Pay attention to which memory addresses show errors, as this can help identify the problematic module.
2. Purchase compatible replacement RAM:
   • Determine your computer’s RAM specifications (speed, type, and form factor).
   • For desktop computers, you can usually mix RAM from different manufacturers as long as the specifications match.
   • For laptops, it’s often best to check the manufacturer’s recommendations for compatible memory.
3. Install the new RAM following the same procedure used when reseating:
   • Ensure proper orientation (the notch in the module should align with the slot).
   • Insert the module firmly until the retention clips engage.
4. Test the new RAM thoroughly:
   • Run both the Windows Memory Diagnostics Tool and MemTest86 to verify the replacement has resolved the issue.
   • Stress test your system with demanding applications to ensure stability under load.
5. Monitor system performance over the next few days for any signs of instability that might indicate remaining issues.

Alternative memory testing tools

While the Windows Memory Diagnostics Tool provides a convenient built-in solution for troubleshooting memory issues in Windows 10, several third-party alternatives offer more comprehensive testing capabilities. These tools can be valuable when you need more detailed diagnostics or when the Windows tool doesn’t identify issues despite persistent symptoms.

MemTest86

MemTest86 is widely considered the industry standard for memory testing and offers several advantages over the Windows Memory Diagnostics Tool:

• Test coverage: Includes 13 different test algorithms compared to Windows’ more limited test suite
• Detection capability: Can identify subtle and intermittent errors that Windows might miss

• Detailed reporting: Provides precise information about error locations, types, and patterns
• Operating system independence: Runs before any OS loads, eliminating potential interference
• Hardware information: Displays detailed technical specifications of installed memory
• Configuration options: Offers extensive customization of test parameters and sequences

However, MemTest86 requires creating bootable media and has a more technical interface that may intimidate less experienced users.

Other notable alternatives

MemTest86+: An open-source fork of the original MemTest86 with some enhanced features

HCI MemTest: Runs within Windows and can test memory while the operating system is running

TestMem5 (TM5): Popular in overclocking communities for its ability to detect errors in highly-tuned systems

Karhu RAM Test: A paid tool known for quickly finding memory errors, popular among enthusiasts

AIDA64: A comprehensive system diagnostic tool that includes memory testing capabilities

When should I use a third-party tool instead of the built-in Windows option?

Consider using third-party memory testing tools in the following scenarios:

1. Persistent issues despite clean Windows test: If the Windows Memory Diagnostics Tool reports no errors but you continue experiencing symptoms consistent with memory problems (system crashes, blue screens, random application failures)
2. Overclocked systems: If you’ve overclocked your RAM or adjusted memory timings, third-party tools offer more sensitivity to subtle timing errors
3. New system builds: When assembling a new computer, more thorough testing ensures components are functioning correctly before you begin using the system
4. Intermittent problems: For issues that occur infrequently, longer and more comprehensive tests have a better chance of detecting errors
5. Hardware enthusiast needs: If you need detailed information about error patterns to diagnose specific issues with memory controllers or motherboard components
6. Multiple passes required: When you need to run extended testing over many hours or days to verify stability under prolonged use
7. Professional environments: In business or enterprise settings where system reliability is mission-critical

For most users, a good approach is to start with the Windows tool for convenience, and if problems persist or more information is needed, progress to a more comprehensive solution like MemTest86.

Frequently Asked Questions (FAQs)

Q: How long does the Windows Memory Diagnostics Tool take to complete?

A: The time required for the Windows Memory Diagnostics Tool to troubleshoot memory issues in Windows 10 varies depending on several factors:

• Amount of RAM: The more memory installed in your system, the longer the test will take. A system with 32GB of RAM will take significantly longer to test than one with 8GB.
• Test settings: Using the Standard setting (default) typically takes 30-45 minutes for a system with 16GB of RAM. The Basic setting completes faster, while the Extended setting can take several hours.
• Pass count: Each additional pass multiplies the testing time. By default, the tool runs one pass, but you can configure it to run multiple passes for more thorough testing.
• System hardware: The speed of your processor and memory can affect testing time, with newer hardware generally completing tests more quickly.

As a general guideline, expect the default test to take approximately 20-30 minutes for systems with 8GB of RAM, 30-45 minutes for 16GB, and 45-90 minutes for 32GB or more.

Q: Can I use my PC while the test is running?

A: No, you cannot use your PC while the Windows Memory Diagnostics Tool is running. The tool operates at a pre-boot level, meaning it runs before Windows loads. This approach is necessary because:

• Testing memory requires exclusive access to read and write to all memory locations
• The operating system itself uses RAM, which would interfere with testing
• For accurate results, the test needs to control all aspects of memory allocation

When you initiate the test, your computer will restart, and the test will run in a specialized environment. Only after the test completes will your computer boot back into Windows. Plan accordingly and save all your work before starting the diagnostic.

Q: What should I do if the tool freezes during the test?

A: If the Windows Memory Diagnostics Tool appears to freeze or stop responding during testing, follow these steps:

• Be patient first: Some tests take longer than others, and what appears to be a freeze might be a particularly intensive test. Wait at least 15-20 minutes before assuming the tool has truly frozen.
• Force a restart: If you’re confident the tool has frozen, press and hold the power button on your computer until it shuts down, then power it back on.
• Consider the freeze a diagnostic clue: A freeze during memory testing often indicates a serious memory problem. The test may have encountered critically faulty memory that prevented it from continuing.
• Try a different testing approach:
  • Run the Windows Memory Diagnostics Tool again, but select the Basic test mix instead of Standard or Extended
  • Try testing with only one RAM module installed at a time to identify if a specific module is causing the freeze
  • Use a third-party tool like MemTest86 that might handle severe memory errors differently
• Check for hardware issues beyond memory: If the diagnostic repeatedly freezes at the same point, consider potential motherboard issues, particularly with the memory controller or BIOS settings.

Q: Is this tool available in Windows 11 and older versions?

A: Yes, the Windows Memory Diagnostics Tool is available across multiple Windows versions:

• Windows 11: The tool is included and functions identically to the Windows 10 version.
• Windows 10: Fully supported in all editions and builds.
• Windows 8/8.1: Available with the same functionality.
• Windows 7: Included and fully functional.
• Windows Vista: First version to include the tool as a standard component.
• Windows XP: Available as part of the Windows Memory Diagnostic, which was a separate download from Microsoft.

In summary

The Windows Memory Diagnostics Tool provides Windows 10 users with a powerful yet accessible way to identify potential RAM issues before they lead to serious system problems. By understanding how to run this built-in utility, interpret its results, and take appropriate action when issues are detected, you can maintain system stability and extend the lifespan of your computer.

While memory problems can be frustrating, they’re often straightforward to resolve once identified — whether through reseating RAM modules or replacing faulty hardware.

Remember that proactive memory testing is a valuable part of routine system maintenance, not just a troubleshooting step when problems arise. By incorporating occasional memory diagnostics into your maintenance routine, you can catch potential issues early and ensure your system continues to run reliably for years to come.

Windows Memory Diagnostic — утилита для тестирования оперативной памяти компьютера. Утилита бесплатна и встроена в операционную систему Windows 7, Windows 8 и Windows 10.

Чтобы протестировать оперативную память, выполните следующие действия:

1. Нажмите на кнопку Пуск. В строке поиска введите «mdsched» (без кавычек) и нажмите на клавишу Enter.


   Картинка с сайта: wargaming.net

2. В появившемся окне выберите пункт «Выполнить перезагрузку и проверку (рекомендуется)».


   Картинка с сайта: wargaming.net

   Перед перезагрузкой компьютера сохраните все важные документы.

3. Сразу после перезагрузки начнётся тест (со стандартными параметрами). Нажмите F1, чтобы изменить параметры. С помощью клавиш со стрелками вверх/вниз выберите параметр «Расширенный (Extended)».


   Картинка с сайта: wargaming.net

4. Кроме того, следует отключить кэш, чтобы утилита обращалась непосредственно к оперативной памяти. Для этого после выбора параметра «Расширенный» нажмите на клавишу Tab и выберите пункт «Выкл.», режим проходов установите не менее 20: чем больше проходов, тем выше вероятность обнаружить дефекты. Для начала теста нажмите на клавишу F10. После окончания теста произойдёт автоматическая перезагрузка.

   Проверка памяти может занять продолжительное время.

5. Информация о выявленных ошибках либо о том, что ошибки не обнаружены, появится на экране после загрузки операционной системы.


   Картинка с сайта: wargaming.net

RAM (Random Access Memory) is the working memory of a computer that operates almost every function. Whenever you load a program or input data related to a query, it will be transferred to RAM and then read by it to process the instructions. But faults in this memory can cause problems like application crashes, system not responding, or BSOD.

To get an idea about the health of your system’s RAM, you can use Windows memory diagnostic tool. It is a built-in tool that can help you in this regard. This article will describe this particular tool, its working, benefits, and how to use it. Let us show you all of these steps by step.

Overview of Windows Memory Diagnostic

It is a built-in tool for Windows operating system to check the RAM’s health and issues. Windows memory diagnostic tool is available in every Window version after Windows 7. Does not matter what is the version you are using in your device, you can access this tool and perform this test.

This tool is completely free for everyone without any registration requirements. You can use this tool with a little knowledge of the system and proficiency in working with it. With the help of this diagnostic tool, you can get results regarding memory problems. All in all, it will be a good choice for you to pick and look for problems in RAM to get them resolved.

How to Check RAM with Windows Memory Diagnostic?

Before checking RAM with this specific tool, you should need to take some precautions. Be mindful that this process needs a quick restart after following some steps. So, you should have to save your files (if working) before starting the process. If you have not done this, you will face problems because the lost data is not recoverable.

Now, let us show you the process to use Windows Memory Diagnostic tool for RAM analysis.

Step 1. Open the Control Panel of your system by clicking on «Windows Icon»

Картинка с сайта: www.easeus.com

Step 2. Look for System and Security and tap to open it

Картинка с сайта: www.easeus.com

Step 3. Search for the Administrative tool in the list shown on your device’s window

Step 4. Click on «Diagnose your computer’s memory problems» just below that option

Картинка с сайта: www.easeus.com

Step 5. A small window will pop up with the option «Restart now and check problems»

Step 6. Click on that option to restart the device

This is all that you have to do to run this test. When the device reboots, it will be opened in the Windows memory diagnostic environment. The tool will run multiple tests including LRAND, CHCKR3, and others simultaneously to analyze the RAM of your device.

There are other ways also available for accessing this tool. Those methods need little knowledge of the technical specifications of your system. You should have to use different keys to open this tool quickly and run this test. Let us show you those methods too to access this tool.

1. Using Run Keys
2. Using CMD Keys

Using Run Keys

Step 1. Press the Windows button and R simultaneously

Step 2. It will open a dialogue box

Step 3. Search for «mdsched» and tap on the «OK» button

Step 4. Wait until you get the short window with «Restart now and check for problems»

Step 5. Click on that option to run this test

Using CMD Keys

Step 1. Press Windows and R simultaneously

Step 2. Search for «cmd» in the box and click on the «OK» button

Картинка с сайта: www.easeus.com

Step 3. Type mdsched in the opened black window

Картинка с сайта: www.easeus.com

Step 4. Tap the «Enter» button available on your keyboard

Step 5. It will begin the Windows memory diagnostic test and complete it in a few minutes

How to Find Windows Memory Diagnostic Results?

Whether you have used the first method to run this test or any of the others, the process to check the results will be the same. It does not have even a single difference depending on the ways to run this test. So, you can choose any of the above methods to run this tool and wait until your device will be restarted a few minutes after its completion.

When you have signed in to your device, it is time to check the results of the Windows memory diagnostic tool test. Here are the steps that you should have to follow in this regard.

Step 1. Go to the Windows search bar

Step 2. Type eventvwr.exe in the search bar

Step 3. Click on the first option shown on the screen

Step 4. It will open a window with some options in the left vertical bar

Step 5. Expand the «Windows Logs» folder by clicking on it

Step 6. Right-click on the System option shown in the dropdown options

Step 7. Now, click on the «Find» option given there

Картинка с сайта: www.easeus.com

Step 8. Type MemoryDiagnostics-Results and tap on «Find Next»

Картинка с сайта: www.easeus.com

Step 9. Double click on the file with this name to view the results in the form of a message

Bottom Line

This blog has properly discussed how to use Windows memory diagnostic tool and check its results. You can use any of the above methods to run this test and analyze your device’s memory.

But it is recommended to follow the steps with the care mentioned above. The reason is a minor mistake in the inserted keys will run another test with which you may be unfamiliar.
