In most cases, we do not need to install TFTP Client on a Windows computer. This is because the TFTP (Trivial File Transfer Protocol) is a very simple file transfer protocol that has less security (or no security). This makes it unsafe for day-to use except for certain special situations.

TFTP is mostly used to move the backup/restore configurations and transfer the OS/boot images to network devices where the internet or USB drive access is not available. For example, upgrading the OS of CISCO or Fortigate devices can be done only via Telnet or SSH (no web access) by using TFTP.

Though we rarely use it on Windows client OS, installing a TFTP client on Windows 10 or Windows 11 will be helpful to test and confirm that the TFTP server is working well and ready to transfer data over the network.

In this guide, we will install/enable the built-in Windows TFTP client and test whether it can send and receive data through this protocol.

Installing a TFTP client on a Windows 11 computer is almost identical to Windows 10. The below screenshots are suitable for all Windows clients and Server Operating Systems.

1) Make sure that you have administrative access to enable the feature.

2) Go to the Control panel and click on ‘Programs & Features’.

3) Click on ‘Turn Windows features on or off’ then tick the ‘TFTP Client’ as shown below.

4) Press OK and wait for the installation to complete.

How to Verify that Windows TFTP Client Installed Successfully?

It is like a telnet client, when the feature has not been installed on a computer, the relevant commands will return an unknown command error.

For example, before installing the TFTP client, if you open a command prompt and type ‘tftp’, it will return the below message.

When it is installed, the same command will give the below output.

That was a clear indication that the Windows TFTP client is installed on your computer correctly.

How to Check a TFTP Server from Windows 10/11 Client

Let’s assume that the TFTP server setup is done correctly and the network security firewall is accepting incoming and outgoing traffic in the server.

Once we installed the client on Windows PC, we need to allow TFTP traffic in the Windows firewall or third-party firewall/anti-virus solution.

You can altogether disable the Windows firewall to test it.
Allow the TFTP program or port number in the firewall.

How to Completely switch off the Windows Defender Firewall to allow TFTP

5) Visit the control panel, and enable the ‘Large Icons’ view. This will show the all Control panel icons.

6) Click on ‘Windows Defender Firewall’ and open ‘Turn Windows Defender Firewall on or off.’

Turn Windows Defender Firewall Off For TFTP

7) Depending on the connectivity type, you can turn off the Windows firewall. If you are not sure about it, then turn off both (Private and Public network settings). This will entirely turn off the network protection. It is highly recommended to put back the settings once the TFTP test is completed.

If you are not convinced about switching off the full Windows firewall, then follow the below step to allow particular TFTP traffic only.

How to Enable only TFTP Traffic in Windows Firewall

It can be done in two ways.

Allow the TFTP application
Allow the TFTP protocol.

Enable TFTP Application.

This method depends on which program you are using to connect the TFTP server. In our case, we are using the built-in Windows TFTP client. So, we need to allow the appropriate .exe file through the Windows firewall. If you are using any other third-party tools, you need to call those .exe files as shown below.

Go to the same Windows defender firewall settings in Windows 10 or Windows 11. Click on ‘Allow an app or feature….’ Option.

9) Mostly you will not find the TFTP app on this list. Click on the ‘Change Settings’ button at the top right, ‘Allow another app.’

10) Browse the TFTP.exe, which is located under the system32 folder. If you are using any third-party TFTP clients; you need to browse the particular exe file from its location.

11) Click add to give the exception in the Windows. In this way, the Windows defender firewall will allow incoming and outgoing traffic of the TFTP.exe program without any restriction.

Allow TFTP Protocol in Windows 10/11 Firewall

Let’s assume you use multiple tools and programs which use the TFTP protocol. It is not advisable to follow the earlier step and add each program to the firewall. Instead of that, we can add the common TFTP protocol.

TFTP uses TCP port 69. We will simply enable this port for incoming and outgoing traffic.

12) In the usual Windows defender firewall settings page, click on ‘Advanced Settings.’

13) In the ‘Inbound Rules’ create a new rule.

14) Select ‘Port’ and enter 69 as TCP port.

15) Make sure that ‘Allow the connection‘ is selected on the next screen. Also, select all 3 network types.

16) Give a name to the rule and press OK.

17) Make sure it is enabled and listed in ‘Inbound Rules’.

Allowed TFTP Port 69 In Windows Firewall

18) Repeat the same steps in ‘Outbound Rules’

With these above steps, your Windows 10/11 PC is ready to use the TFTP client.

Test Windows TFTP Client on Windows 10/11

Let’s assume that the TFTP server setup is done and files are available at the correct location. Before you download a file from the TFTP server, you must know the right file name with the extension.

In this example, I’m going to download a file called ‘tftp.zip’ from server 192.168.1.244. We use the GET command to download a file.

Type the below command in the command prompt (you must have a working network communication with the server, the ping command is handy to confirm the connectivity)

Tftp -i [server IP address] GET [file name with the expension]

The below message indicates that the file transfer is successful. The file will be downloaded at the location where you execute the command. In this case, it is C:\Users\Dinesh folder.

To upload a file using the TFTP client, use the following command. We use the PUT command to upload a file.

Tftp -i [server IP address] PUT [path of the file with the expension]

The below command output shows the successful file upload to the server by the Windows TFTP client. The file will be uploaded to the root of the TFTP server. We do not have any option to change the upload location.

As I’m using the Solarwind TFTP server in this example, the above command uploaded the file to this root location.

There you go, we learned how to install the built-in TFTP client on Windows 10/11 and how to ensure it works fine by modifying the firewall settings. Also, we showed the simple steps to upload and download a file using the TFTP client.

Источник

Overview

This page describes how to use the TFTP client on Windows OS. The screenshots on this page are for Windows 10, but the same applies to Windows 11.

You can use the TFTP client on Windows 10. You do not need to bother installing a TFTP client application. However, it is not enabled by default. Follow the steps below to enable the TFTP client on Windows 10.

Open [Windows Features]
TFTP Client checked and enabled
Allow TFTP on Windows Firewall

The screenshots of the following steps are for Windows 10; they are almost the same for Windows 11.

Open [Windows Features]

To enable the TFTP client, do so from the [Windows Features] dialog box. To open [Windows Features], click [Control Panel] -> [Programs] -> [Turn Windows Features on or off].

TFTP Client checked and enabled

On [Windows Features] dialog box, check [TFTP Client] and click [OK] to enable the TFTP client. If prompted for a reboot, reboot the system.

Allow TFTP on Windows Firewall

Firewall conditions must be added for TFTP file transfers with an enabled TFTP client. Click on [Control Panel] -> [System and Security] -> [Windows Defender Firewall].

Click [Allow an app or feature through Windows Defender Firewall].

By clicking on [Change settings], [Allow another app] will become active.

From [Browse], specify the path to TFTP.EXE. TFTP.EXE is located under Windows\System32.

It is OK if [Trivial File Transfer Protocol App] is added to [Allowed apps and features].

If you are using firewall software other than Windows Firewall, please allow TFTP in that firewall software.

Once the TFTP client is enabled, you can transfer files via TFTP using the tftp command on the command prompt. tftp command format can be found in the help. Below is the help for the tftp command.

C:\Users\Gene>tftp

Transfers files to and from a remote computer running the TFTP service.

TFTP [-i] host [GET | PUT] source [destination]

  -i              Specifies binary image transfer mode (also called
                  octet). In binary image mode the file is moved
                  literally, byte by byte. Use this mode when
                  transferring binary files.
  host            Specifies the local or remote host.
  GET             Transfers the file destination on the remote host to
                  the file source on the local host.
  PUT             Transfers the file source on the local host to
                  the file destination on the remote host.
  source          Specifies the file to transfer.
  destination     Specifies where to transfer the file.

For example, to transfer the file “c1841-ipbase-mz.124-12a.bin” with the TFTP server IP address of 192.168.1.111, enter the following command.

C:\Users\gene>tftp -i 192.168.1.111 get c1841-ipbase-mz.124-12a.bin
Transfer successful:  15788240 bytes in 49 second(s)、322208 bytes/s

The downloaded file is stored in the current directory of the command prompt.

Summary

Points

TFTP clients can be added from [Windows features].
Once the TFTP client is enabled, the tftp command is available at the command prompt.

Источник

В данной статье показаны действия, с помощью которых можно включить компонент TFTP Client в операционной системе Windows 10, Windows 8.1 и Windows 7

TFTP (Trivial File Transfer Protocol — простой протокол передачи файлов) используется главным образом для первоначальной загрузки по сети операционных систем бездисковых рабочих станций, для обмена файлами с удаленным компьютером, на котором запущена служба TFTP, а так же для загрузки обновлений и конфигураций сетевых устройств (модемов, маршрутизаторов, систем хранения данных и т.п.). TFTP, в отличие от FTP, не содержит возможностей аутентификации (хотя возможна фильтрация по IP-адресу) и основан на транспортном протоколе UDP.

По умолчанию компонент TFTP Client в операционных системах Windows 10, Windows 8.1 и Windows 7 отключён, но при необходимости можно легко включить его используя любой из способов, которые представлены далее в этой инструкции.

Содержание

Как включить TFTP Client в окне «Компоненты Windows»
Включение TFTP Client в командной строке
Всключение через Windows PowerShell

Как включить TFTP Client в окне «Компоненты Windows»

Чтобы включить компонент TFTP Client, нажмите сочетание клавиш + R, в открывшемся окне Выполнить введите (скопируйте и вставьте) OptionalFeatures и нажмите клавишу Enter↵.

В открывшемся окне «Компоненты Windows» установите флажок компонента TFTP Client и нажмите OK.

Через непродолжительное время Windows применит требуемые изменения и компонент TFTP Client будет включен.

Включение TFTP Client в командной строке

Вы можете включить или отключить компонент TFTP Client в командной строке используя DISM.

Чтобы включить компонент TFTP Client, запустите командную строку от имени администратора и выполните следующую команду:

Dism /online /Enable-Feature /FeatureName:TFTP

Чтобы отключить компонент TFTP Client, запустите командную строку от имени администратора и выполните следующую команду:

Dism /online /Disable-Feature /FeatureName:TFTP

Всключение через Windows PowerShell

Также включить или отключить компонент TFTP Client можно в консоли PowerShell.

Чтобы включить компонент TFTP Client, откройте консоль Windows PowerShell от имени администратора и выполните следующую команду:

Enable-WindowsOptionalFeature –FeatureName «TFTP» -Online

Чтобы отключить компонент TFTP Client, откройте консоль Windows PowerShell от имени администратора и выполните следующую команду:

Disable-WindowsOptionalFeature –FeatureName «TFTP» -Online

После включения компонента TFTP Client можно использовать утилиту tftp.exe для выполнения необходимых задач.

Если компонент TFTP Client отключен, то при вводе команды tftp в консоли командной строки вы увидите сообщение о том что:

«tftp» не является внутренней или внешней

командой, исполняемой программой или пакетным файлом.

Используя рассмотренные выше действия, можно включить или отключить компонент TFTP Client в операционной системе Windows 10, Windows 8.1 и Windows 7

Источник

To install TFTP Client in Windows 10, follow these steps.

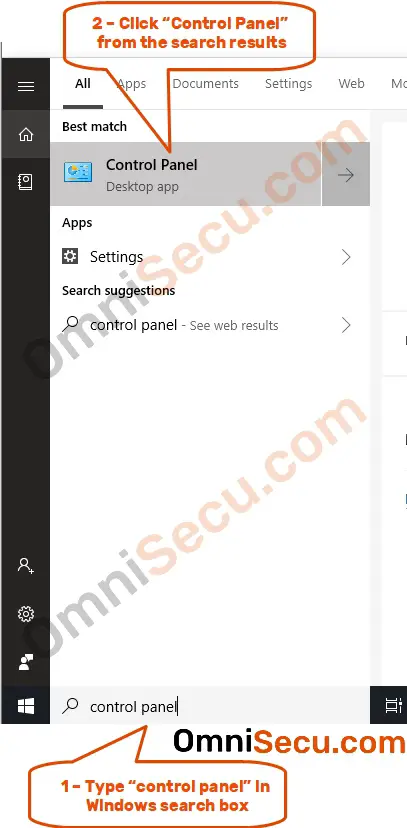

Step 1 — Type «control panel» in Windows search box. Click «Control Panel» from the search results, as shown below.

Step 2 — Open «Programs and Features» by clicking on it.

Step 3 — Click «Turn Windows features on or off», as shown below.

Step 4 — Search and find for TFTP Client in «Turn Windows features on or off». Check «TFTP Client» checkbox and then click «OK» button.

Step 5 — If everything worked well, you can see a message similar to below screenshot.

Step 6 — Finally, if you want to verify TFTP Client is installed, type «tftp» in PowerShell and press «Enter» key. If TFTP Client is installed, you can see an output similar to below screenshot.

Do you have any suggestions?

Источник

TFTP client installation on Windows

Would you like to learn how to install the TFTP client on a computer running Windows? In this tutorial, we are going to show you how to enable the TFTP client on a computer running Windows.

• Windows 2012 R2
• Windows 10
