Boot img unpack windows

	./mkboot name.img namefolderout

EXAMPLE
	./mkboot recoveryksuamg5.img ksuamg
	Unpack & decompress recoveryksuamg5.img to ksuamg
	  kernel         : /home/xiaolu/work/initramfs/s4/e330s/ksuamg5/zImage
	  ramdisk        : /home/xiaolu/work/initramfs/s4/e330s/ksuamg5/ramdisk.gz
	  page_size      : 2048
	  base_addr      : 0x00000000
	  kernel size    : 6911360
	  kernel_addr    : 0x00008000
	  ramdisk_size   : 2685222
	  ramdisk_addr   : 0x02000000
	  second_size    : 0
	  second_addr    : 0x00f00000
	  dtb_size       : 1427456
	  tags_addr      : 0x01e00000
	  cmdline        : console=null androidboot.hardware=qcom user_debug=31 maxcpus=2 msm_rtb.filter=0x3F
	Unpack completed.

	./mkboot namefolderout newimgname.img

EXAMPLE
	./mkboot ksuamg5 recovery.img
	mkbootimg from ksuamg5/img_info.
	  kernel         : /home/xiaolu/work/initramfs/s4/e330s/ksuamg5/zImage
	  ramdisk        : /home/xiaolu/work/initramfs/s4/e330s/ksuamg5/new_ramdisk.gz
	  page_size      :
	  base_addr      : 0x00000000
	  kernel size    : 6911360
	  kernel_addr    : 0x00008000
	  ramdisk_size   : 2685222
	  ramdisk_addr   : 0x02000000
	  second_size    :
	  second_addr    :
	  dtb_size       : 1427456
	  dtb_img        : dt.img
	  tags_addr      : 0x01e00000
	  cmdline        : console=null androidboot.hardware=qcom user_debug=31 maxcpus=2 msm_rtb.filter=0x3F
	Kernel size: 6911360, new ramdisk size: 3416778, recovery.img: 11759616.
	recovery.img has been created.
	...

	yourkernelsources/scripts/dtbTool -s 2048 -o arch/arm/boot/dt.img -p scripts/dtc/ arch/arm/boot/

EXAMPLE
	SHV-E330S_JB_Opensource/Kernel$ scripts/dtbTool -s 2048 -o arch/arm/boot/dt.img -p scripts/dtc/ arch/arm/boot/
	DTB combiner:
	  Input directory: '/media/diskd/kernel/SHV-E330S_JB_Opensource/Kernel/arch/arm/boot/'
	  Output file: '/media/diskd/kernel/SHV-E330S_JB_Opensource/Kernel/arch/arm/boot/dt.img'
	Found file: msm8974-sec-ks01-r03.dtb ... chipset: 2114015745, platform: 3, rev: 0
	Found file: msm8974-sec-ks01-r07.dtb ... chipset: 2114015745, platform: 7, rev: 0
	Found file: msm8974-sec-ks01-r06.dtb ... chipset: 2114015745, platform: 6, rev: 0
	Found file: msm8974-sec-ks01-r04.dtb ... chipset: 2114015745, platform: 4, rev: 0
	Found file: msm8974-sec-ks01-r11.dtb ... chipset: 2114015745, platform: 11, rev: 0
	Found file: msm8974-sec-ks01-r02.dtb ... chipset: 2114015745, platform: 2, rev: 0
	Found file: msm8974-sec-ks01-r00.dtb ... chipset: 2114015745, platform: 0, rev: 0
	Found file: msm8974-sec-ks01-r05.dtb ... chipset: 2114015745, platform: 5, rev: 0
	Found file: msm8974-sec-ks01-r01.dtb ... chipset: 2114015745, platform: 1, rev: 0
	=> Found 9 unique DTB(s)

	Generating master DTB... completed

dtbToolCM -s 2048 -d "htc,project-id = <" -o arch/arm/boot/dt.img -p scripts/dtc/ arch/arm/boot/

Источник

XDA Forums

Картинка с сайта: xdaforums.com

You are using an out of date browser. It may not display this or other websites correctly.
You should upgrade or use an alternative browser.

How to unpack and repack boot.img full guide by Jai Sharma


  • Thread starter

    jai44


  • Start date

  • #1

How to unpack and repack boot.img

For Windows user

1. Download CarlivImageKitchen from here http://xdaforums.com/attachment.php?attachmentid=3798926&d=1467275078

all credit goes to bluefirebird http://xdaforums.com/member.php?u=5186178

2. extract it using 7zip or similar program
3.. Put your boot.img in boot-resources folder

4. Double click carlive batch file

now select B and Enter

Now choose your boot.img and enter

5. To unpack it type 1 and Enter

that’s it. now you can find extract boot.img in boot folder. type enter for continue and keep this window open if you want to repack it again after
making change in boot folder

edit your files in boot folder and for repacking it again keep reading

Repacking

type 2 for repacking

now you can find you new boot.img in output folder

For Linux user

i am using ubuntu as my linux machine

1. Download Boot.img Tool from here https://github.com/jsharma44/bootimg-tools

2. cd bootimgtools

Type following in terminal

./unpackbootimg -i «boot.img path»

For example

./unpackbootimg -i /home/user/Desktop/boot.img

find your files in bootimgtools

I hope you like it. Please visit my website http://azodik.com/ for more interesting guide

Thank You

Last edited:

  • #2

Extracting boot.img from your device

Extracting boot.img from your device

What we need

1. A rooted phone
2. Enable Usb Debugging in Developer Mode
3. ADB command knowldge

connect your phone via usb cable ensure that usb debugging is enabled
open terminal and type adb devices

if it is showing your device’s serial no than we are ready to go

C. type

adb shell

su

ls -l /dev/block/platform/mtk-msdc.0/11230000.msdc0/by-name

please note this command may vary by device to device. What we are doing here we want to know partition scheme of your device.

note down block name of /boot partition

example it will be like boot -> /dev/block/mmcblk0p7

d. type this

dd if=/dev/block/mmcblk0p7 of=/sdcard/boot.img

now boot.img succesfully transfered to your SD card Copy it to your Desktop

  • #3

How To Extract System Folder From Android device

1. Connect your phone to computer with USB debugging enabled

2. Type following command to check
adb devices

if it is showing your device’s serial no then go to step 3. If not then make sure drivers are installed for your device.

3. To pull system folder use following command

adb pull system

it will pull system folder to your current adb directory. If you want to pull it to some specific directory use following command

adb pull system «output directory»

Example

1. adb pull /system C:/Users/user_name/Desktop/ (For Windows)
2.adb pull /system /home/user/Desktop (for linux)


  • #4

Your link to Windows zip is no longer there. Getting a 410 error

  • #5

Your link to Windows zip is no longer there. Getting a 410 error

link updated..Please check now. Thanks for pointing out it

  • #6

How to unpack and repack boot.img

For Windows user

1. Download CarlivImageKitchen from here http://xdaforums.com/attachment.php?attachmentid=3798926&d=1467275078

all credit goes to bluefirebird http://xdaforums.com/member.php?u=5186178

2. extract it using 7zip or similar program
3.. Put your boot.img in boot-resources folder

4. Double click carlive batch file

now select B and Enter

Now choose your boot.img and enter

5. To unpack it type 1 and Enter

that’s it. now you can find extract boot.img in boot folder. type enter for continue and keep this window open if you want to repack it again after
making change in boot folder

edit your files in boot folder and for repacking it again keep reading

Repacking

type 2 for repacking

now you can find you new boot.img in output folder

For Linux user

i am using ubuntu as my linux machine

1. Download Boot.img Tool from here https://github.com/jsharma44/bootimg-tools

2. cd bootimgtools

Type following in terminal

./unpackbootimg -i «boot.img path»

For example

./unpackbootimg -i /home/user/Desktop/boot.img

find your files in bootimgtools

I hope you like it. Please visit my website http://azodik.com/ for more interesting guide

Thank You

Your link no longer exists. I want to download the software to Windows. I would love for you to update the link. Thank you!

Similar threads

Источник

[Development] How to unpack & repack boot.img or recovery.img using Carliv

[Development] How to unpack & repack boot.img or recovery.img using Carliv


49,851

This is a step-by-step guide on how to use carliv image kitchen to unpack & repack boot.img or recovery.img. It will come in handy for those who wish to port a custom recovery

Requirements

  • Download Carliv Image Kitchen depending on your PC’s architecture (32 or 64 Bit)
  • Windows PC

Steps to unpack and repack a recovery image (recovery.img) and boot image (boot.img)

Follow the steps below to use Carliv Image Kitchen in unpacking & repacking recovery or boot

How to unpack boot.img

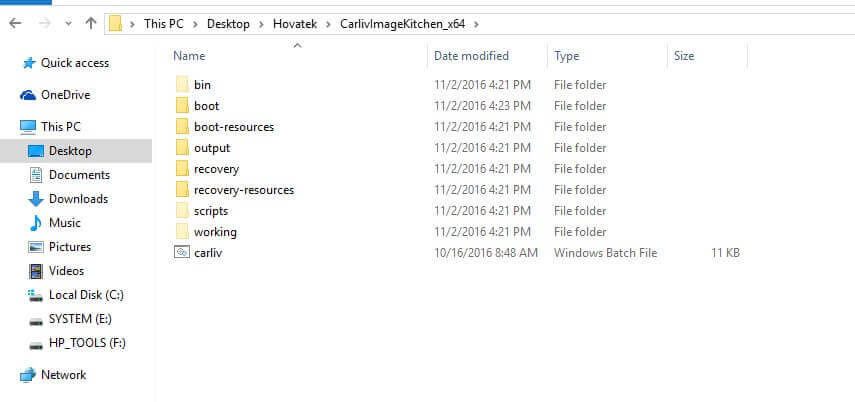

  1. Extract the CarlivImage Kitchen zip file into a folder on the PC

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-1.jpg]

    Картинка с сайта: www.hovatek.com

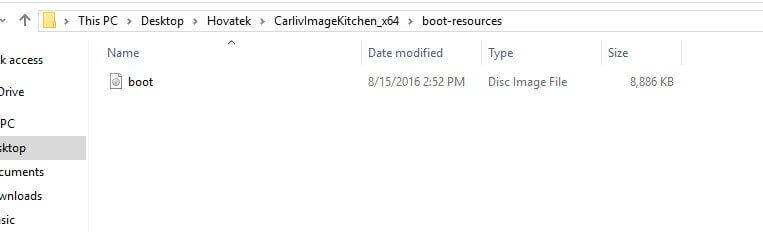

  2. Copy the boot.img into the boot-resources folder

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-2.jpg]

    Картинка с сайта: www.hovatek.com

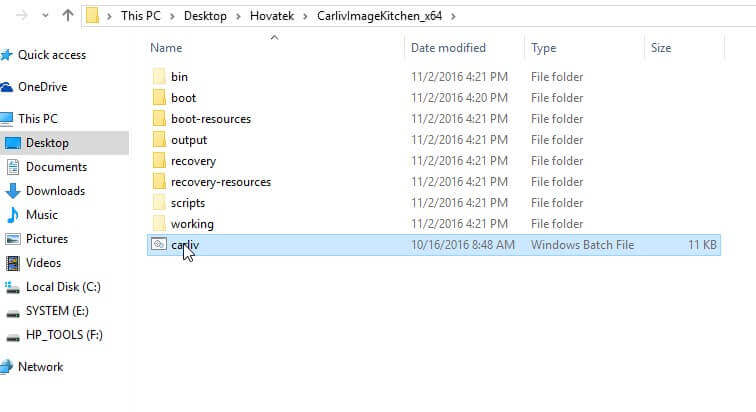

  3. Go back to the root folder and double-click carliv.bat

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-3.jpg]

    Картинка с сайта: www.hovatek.com

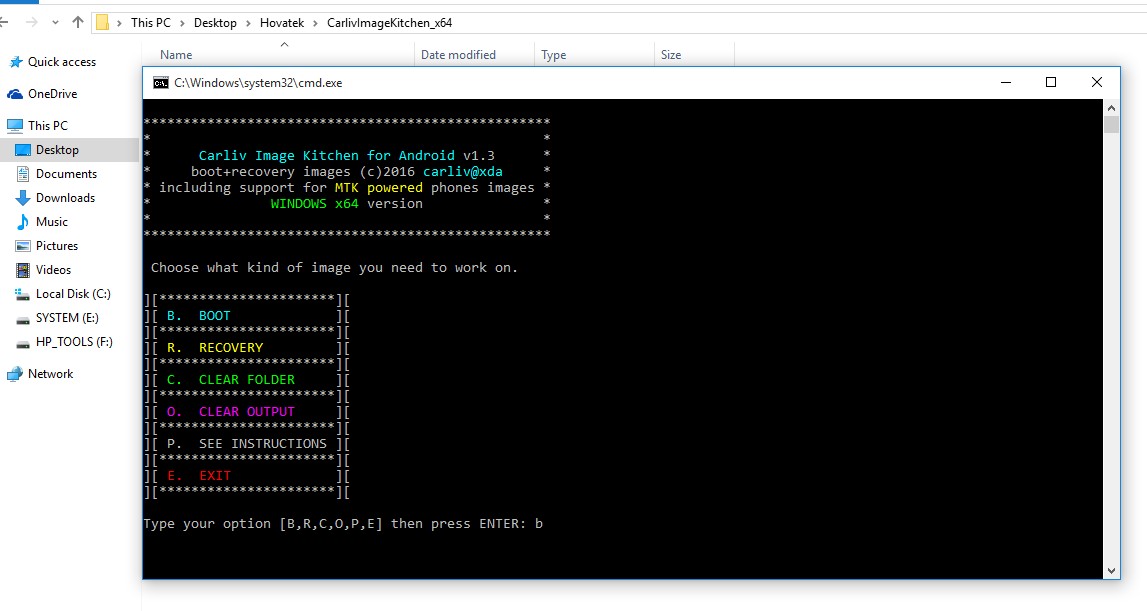

  4. Type b then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-4.jpg]

    Картинка с сайта: www.hovatek.com

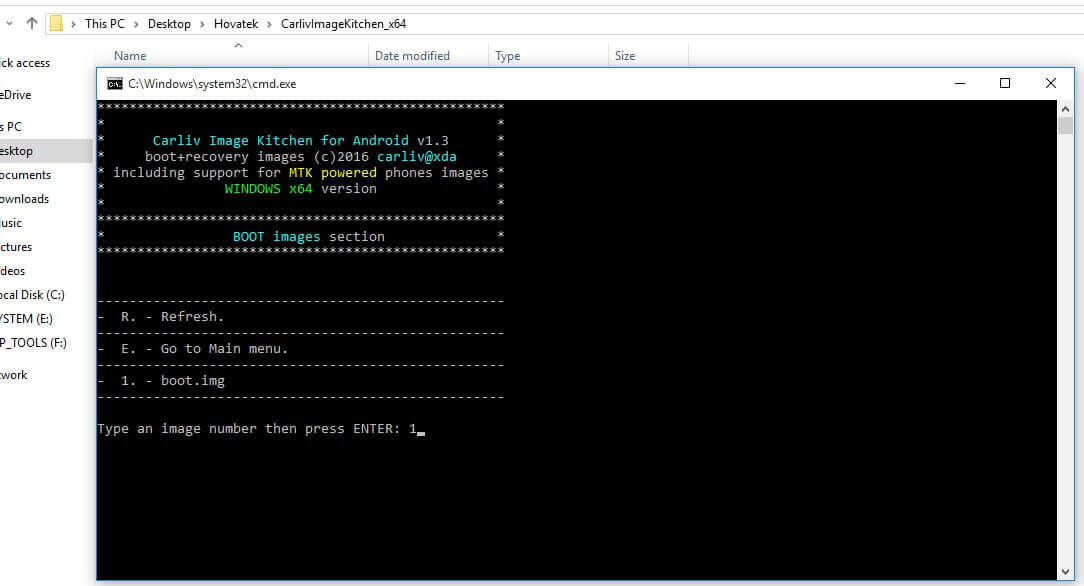

  5. Type 1 then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-5.jpg]

    Картинка с сайта: www.hovatek.com

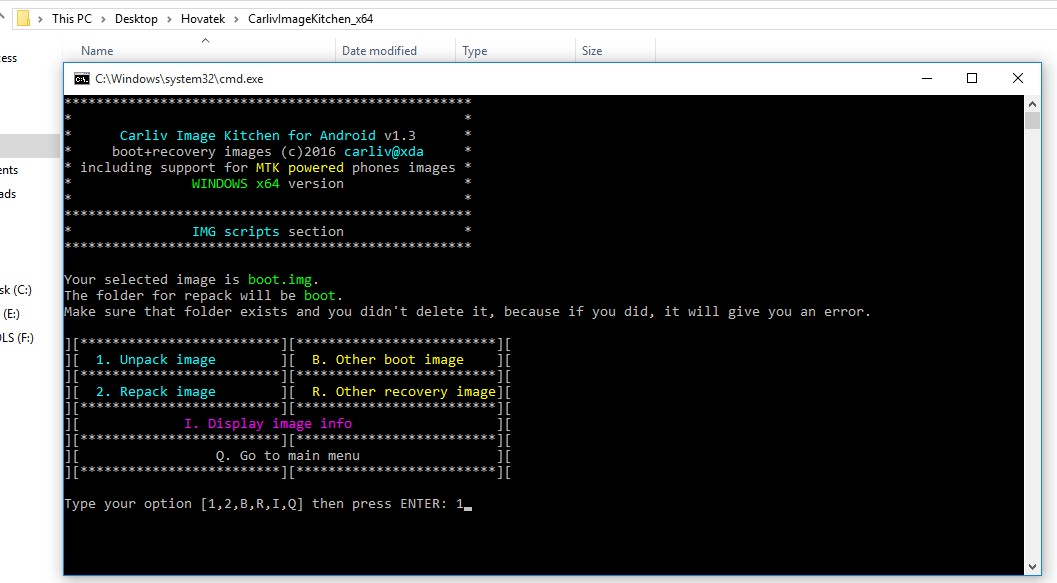

  6. Type 1 then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-6.jpg]

    Картинка с сайта: www.hovatek.com

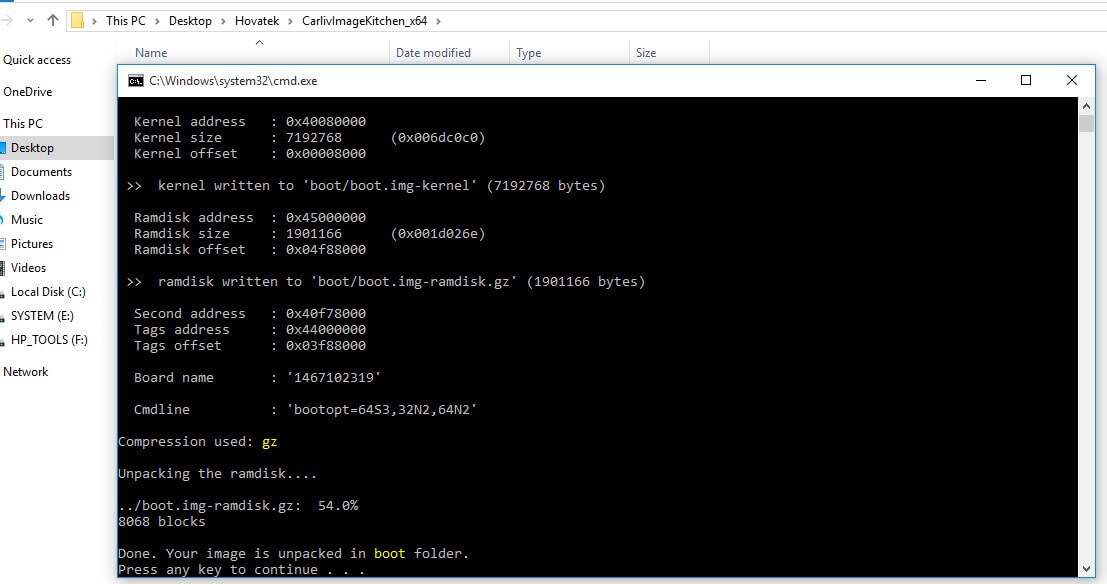

  7. Wait till unpacking is done then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-7.jpg]

    Картинка с сайта: www.hovatek.com

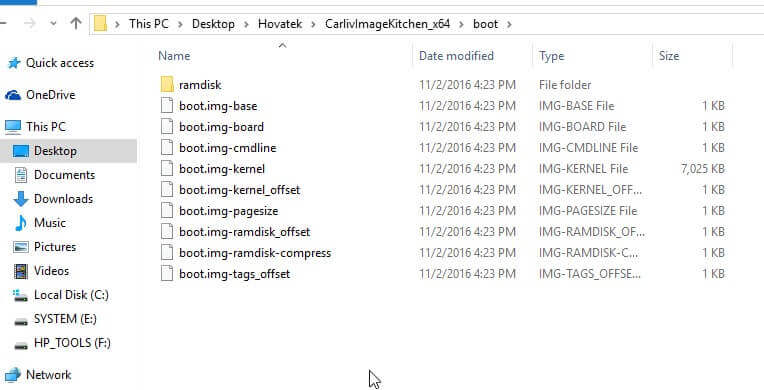

  8. You should find the unpacked boot.img in the boot folder

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-8.jpg]

    Картинка с сайта: www.hovatek.com

How to repack boot.img

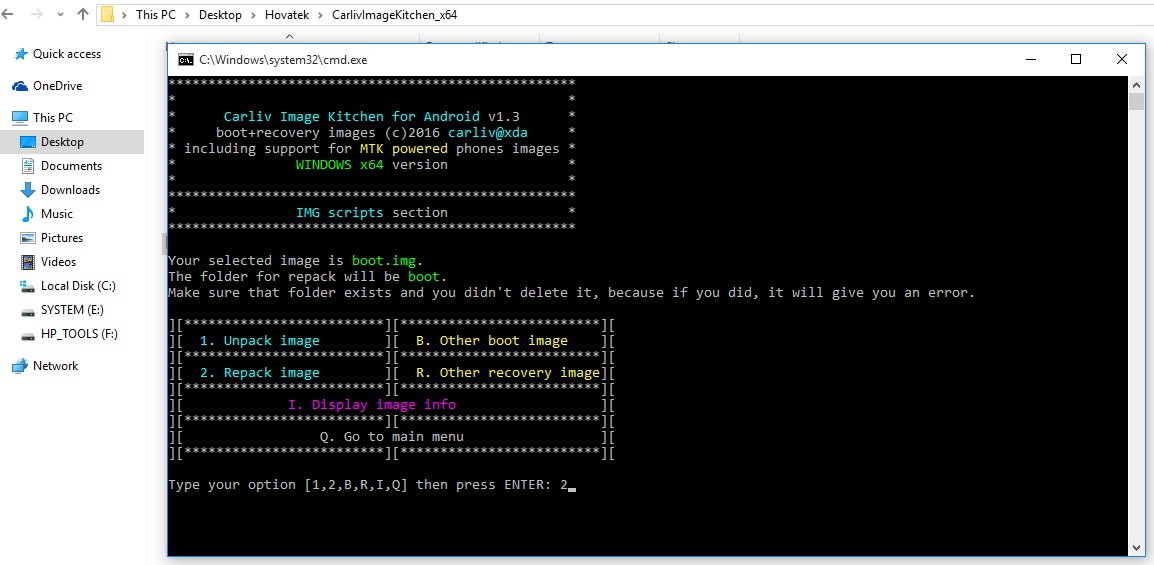

  1. Go back to Carliv Image Kitchen, type 2 then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-9.jpg]

    Картинка с сайта: www.hovatek.com

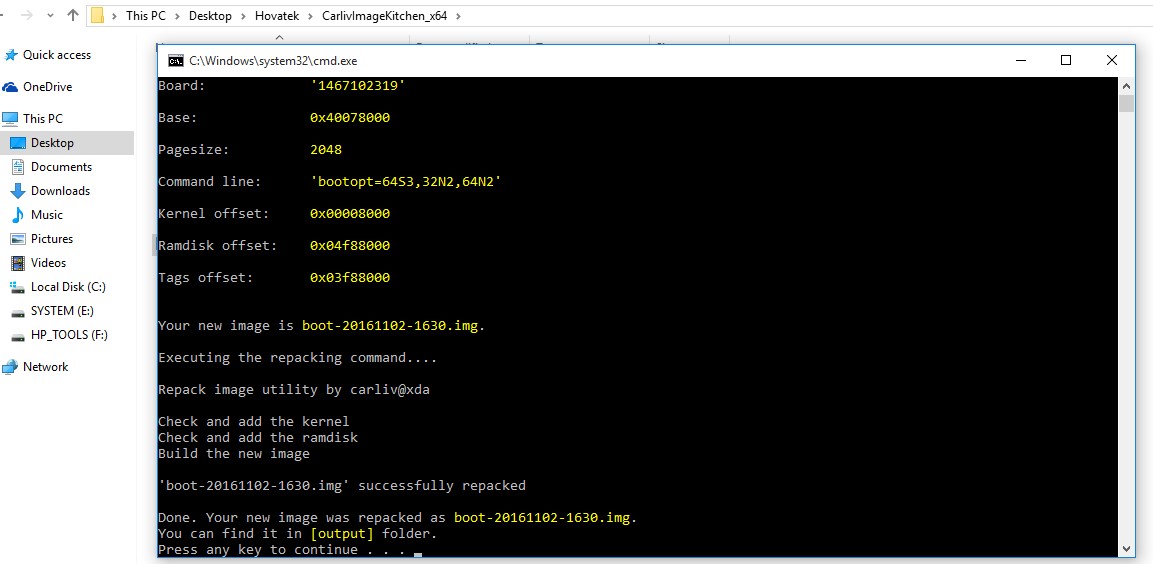

  2. Wait till repacking is done then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-10.jpg]

    Картинка с сайта: www.hovatek.com

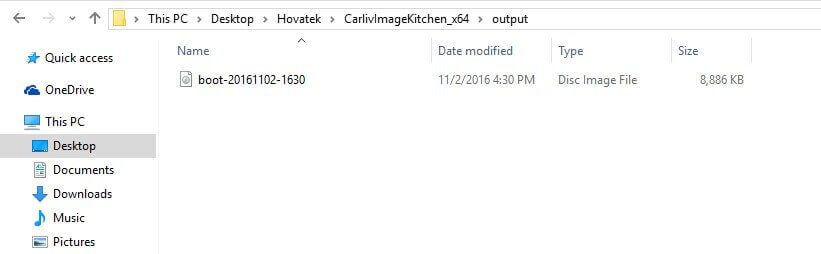

  3. You should find the repacked boot image in the output folder. You can rename it to boot

    [Image: Hovatek-How-to-unpack-and-repack-boot.img-11.jpg]

    Картинка с сайта: www.hovatek.com

How to unpack recovery.img

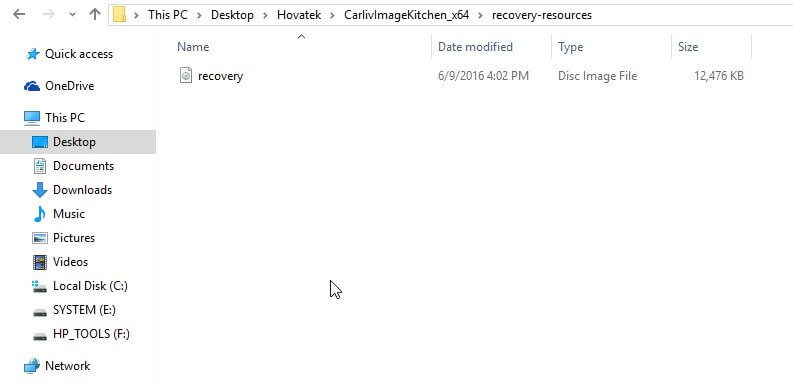

  1.   Copy the recovery.img into the recovery-resources folder

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-1.jpg]

    Картинка с сайта: www.hovatek.com

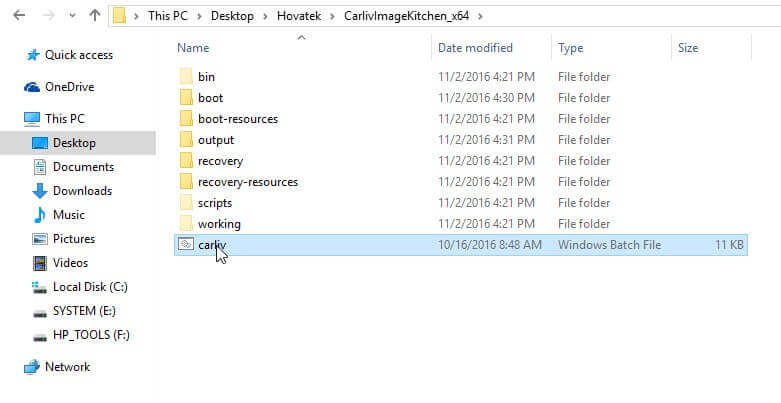

  2. Go back to the root folder and double-click carliv.bat

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-2.jpg]

    Картинка с сайта: www.hovatek.com

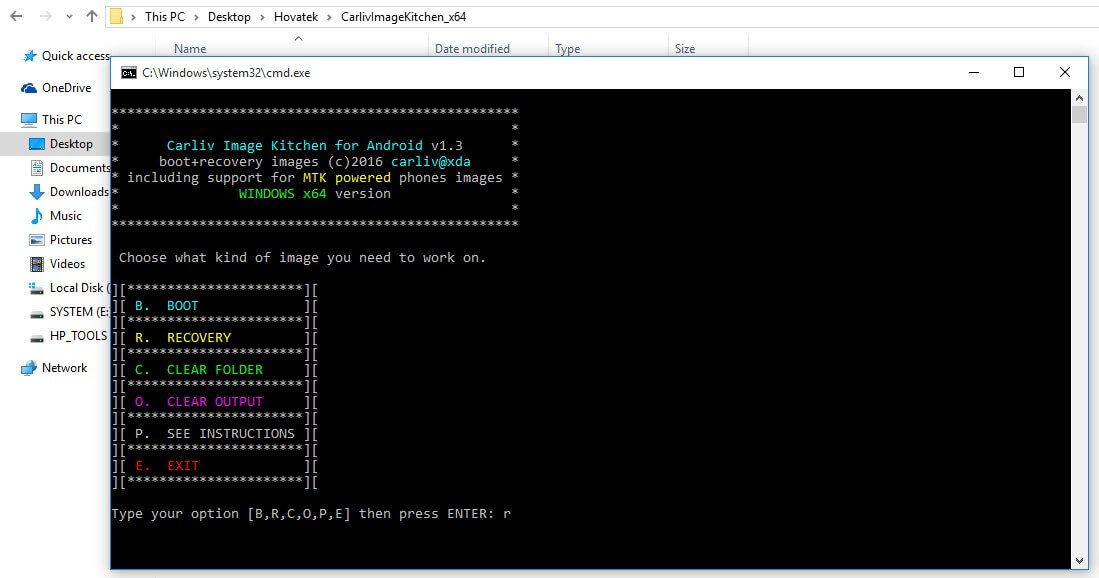

  3. Type r then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-3.jpg]

    Картинка с сайта: www.hovatek.com

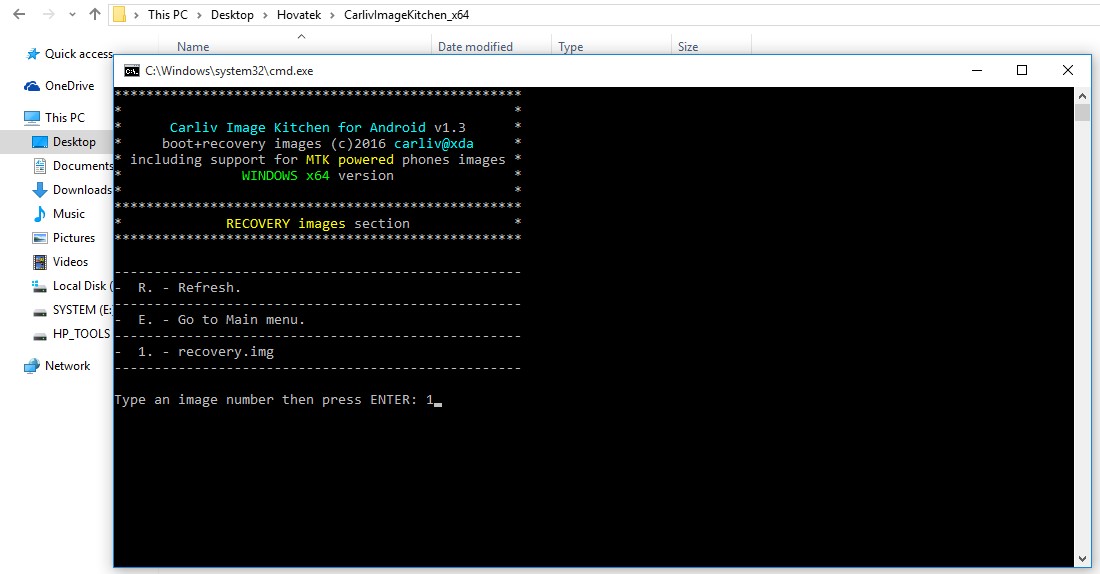

  4. Type 1 then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-4.jpg]

    Картинка с сайта: www.hovatek.com

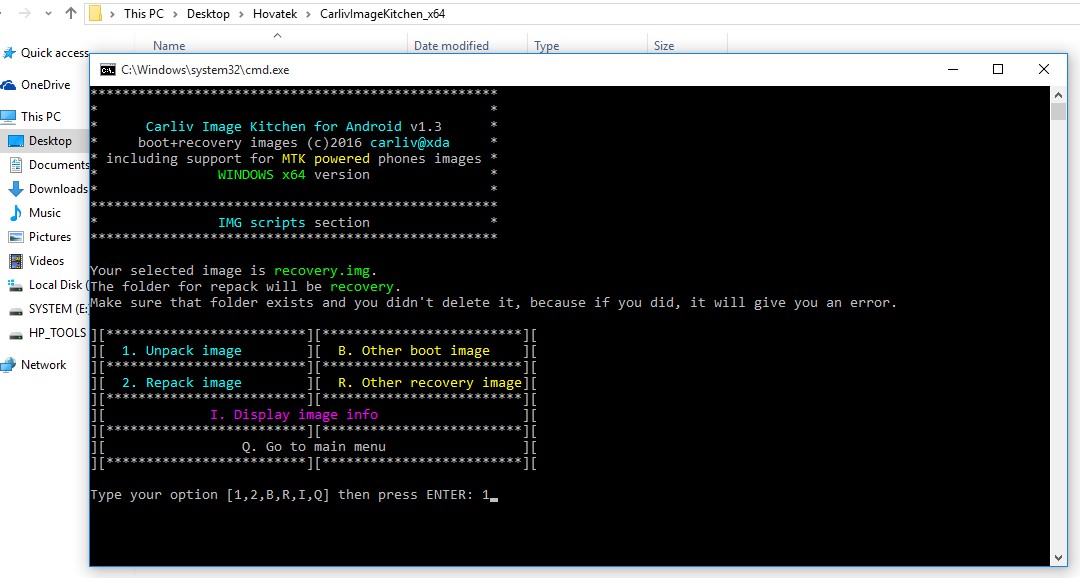

  5. Type 1 then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-5.jpg]

    Картинка с сайта: www.hovatek.com

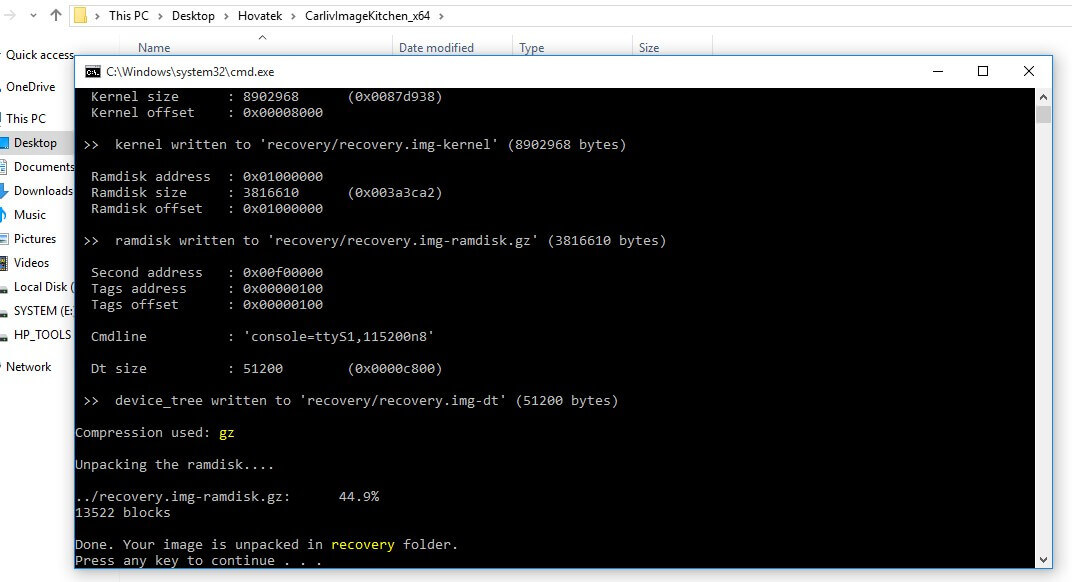

  6. Wait till unpacking is done then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-6.jpg]

    Картинка с сайта: www.hovatek.com

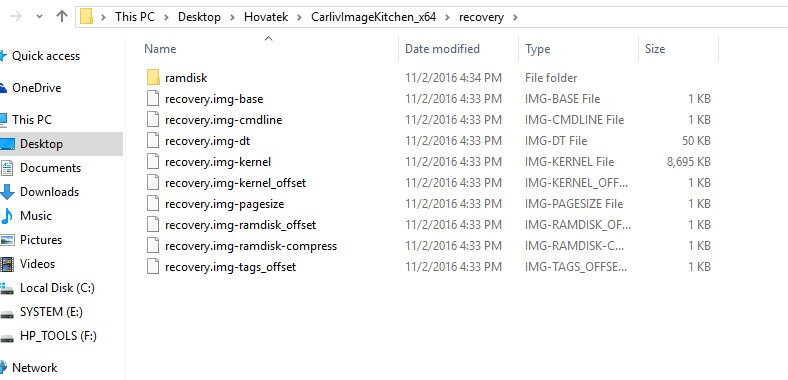

  7. You should see the unpacked recovery.img in the recovery folder

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-7.jpg]

    Картинка с сайта: www.hovatek.com

How to repack recovery.img

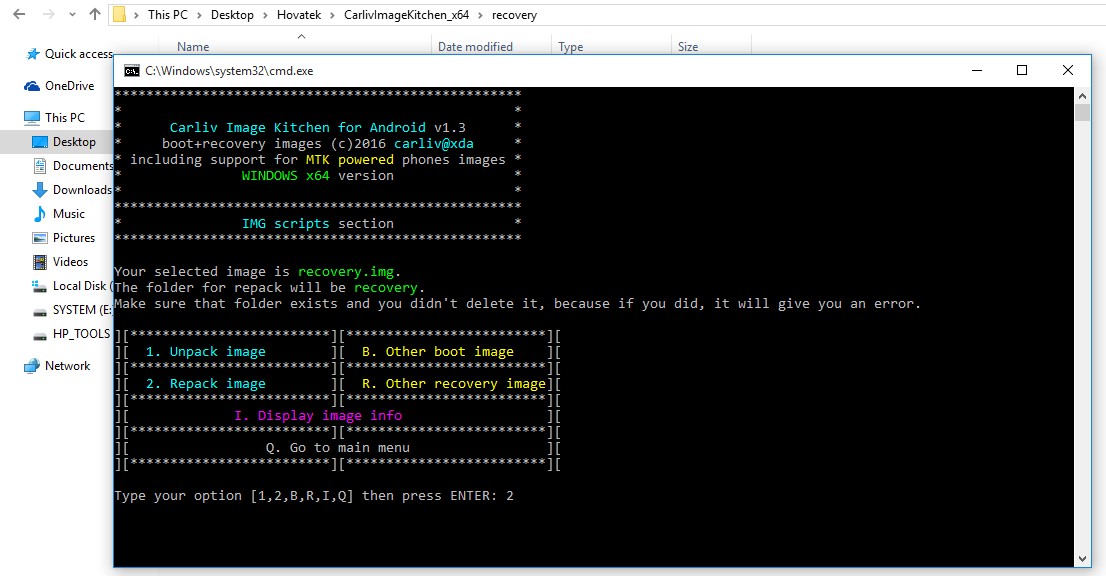

  1. Go back to Carliv Image Kitchen, type 2 then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-8.jpg]

    Картинка с сайта: www.hovatek.com

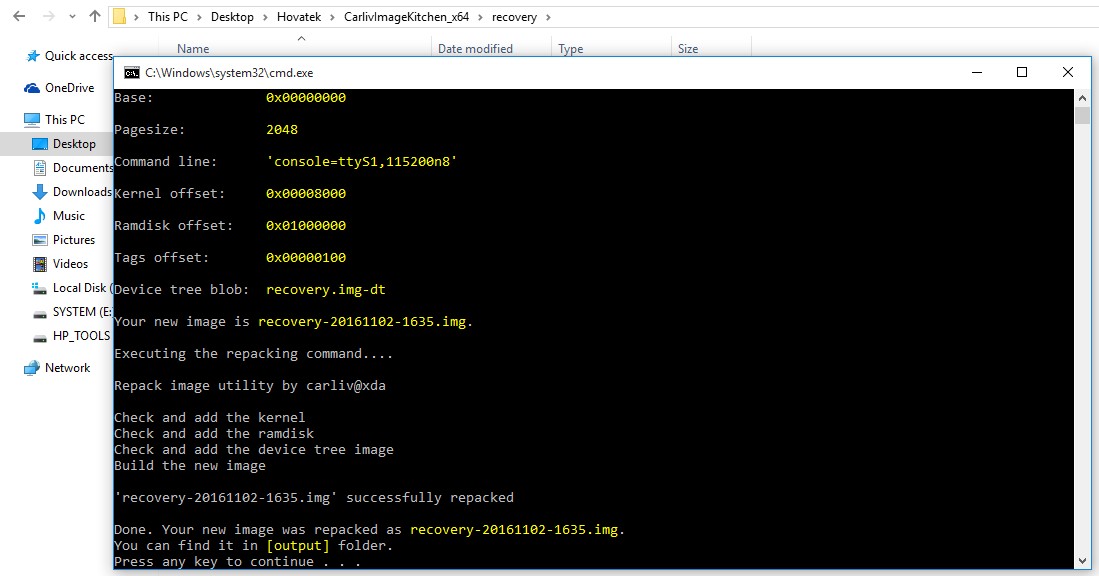

  2. Wait till repacking is done then press Enter

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-9.jpg]

    Картинка с сайта: www.hovatek.com

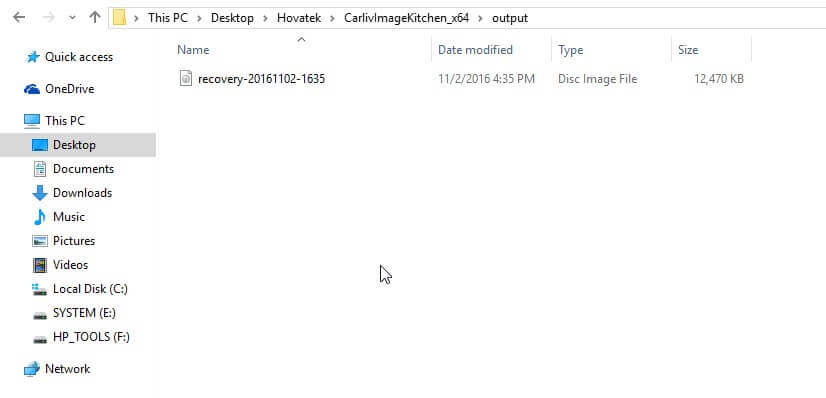

  3. You should see the repacked recovery image in the output folder. You can rename it to recovery

    [Image: Hovatek-How-to-unpack-and-repack-recovery.img-10.jpg]

    Картинка с сайта: www.hovatek.com

Important Notice

  • Ensure to name the file appropriately i.e as either boot.img or recovery.img
  • This will work for -verified.img files, just remove the -verified portion from the file name
  • You might encounter an error unpacking signed images i.e boot-sign.img or recovery-sign.img. For such images, you first need to unsign before unpacking
  • For images in .bin format, simply rename the extension from .bin to .img
  • There are many other tools to unpack and repack Android images so feel free to explore

This post was last modified: 11-02-2024, 04:23 PM by hovatek.


1

Hi, i have problem, i’m trying unpack Huawei Honor 8 (FRD-L19) boot.img, when i try unpack i just get

Your image: boot.img

Create the boot folder.

 Android boot magic not found.
Compression used: ~1
~1file-ramdisk-compress»

Unpacking the ramdisk….

The system cannot find the batch label specified — ~1
Press any key to continue . . .

please help.


49,851

(27-06-2018, 12:05 AM)SuomiPelaajaa Hi, i have problem, i’m trying unpack Huawei Honor 8 (FRD-L19) boot.img, when i try unpack i just get

Your image: boot.img

Create the boot folder.

 Android boot magic not found.
Compression used: ~1
~1file-ramdisk-compress»

Unpacking the ramdisk….

The system cannot find the batch label specified — ~1
Press any key to continue . . .

please help.

It seems your boot is signed. Unsign using https://www.hovatek.com/forum/thread-21005.html


1

hi, i have problem to unpack recovery files

i get this when try unpack

«/recovery.img-ramdisk.gz: cpio: license/openaes: Cannot change mode to rwxr-xr-x: Permission denied»

what should i do next?


49,851

(01-02-2019, 01:55 AM)abdisohad hi, i have problem to unpack recovery files

i get this when try unpack

«/recovery.img-ramdisk.gz:     cpio: license/openaes: Cannot change mode to rwxr-xr-x: Permission denied»

what should i do next?

create a new thread so we’ll focus on this
see https://www.hovatek.com/forum/thread-514.html for how to create a thread


12

I have firmware OTA update for vivo y71…

I want to find recovery.img from OTA firmware, but nothing recovery.img is found, only recovery-resource.dat and install-recovery.sh

How to unpack that’s 2 files recovery for got recovery.img for ported twrp?


49,851

(28-03-2021, 06:10 AM)bontersoft I have firmware OTA update for vivo y71…

I want to find recovery.img from OTA firmware, but nothing recovery.img is found, only recovery-resource.dat and install-recovery.sh

How to unpack that’s 2 files recovery for got recovery.img for ported twrp?

Those won’t do. If the OTA contains a boot.img then that might do

Users browsing this thread:
 1 Guest(s)

Users browsing this thread:
 1 Guest(s)

Источник

Introducing To my devs A gui batch tool to unpack and repack Bootimg with also sign ,

Requirements
1.A boot.img (ofc)
2.Disabled antivirus
3.Windows xpsp3-windows 10
4.Brains
5.Twrp
6.A rooted Phone
7.A Backup of your phone

Now why this tool
To unpack and repack with also sign Boot.img safely And is Fast too and also Safe

FAQ(Frequently asked questions)
1.I need a video on how to use this tool

Video is above
2.Will the APP port my Bootimage
No.only pro version of the software can do it
3.Do i need to Backup My phone
YES .
For Mtk65xx You can use Mtkdroidtools

For mtk67xx you can use
https://www.chinaphonearena.com/forum/showthread.php?tid=11542

For snapdragon
https://forum.xda-developers.com/ge…w-to-backup-qualcomm-phone-root-t3570178/amp/

4.should i flash boot.img with phone with No baseband
Never

5.will it work on all phones
No
6.How do i get Twrp for My phone
http://twrp.me/app/
or you can Port

7.How to root my phone that has TWRP installed

http://www.supersu.com/download

8.Will Signing boot.img Crash my phone
No,But if done wrongly

9.Need screenshot
check below

10.Need to contact the creator
t.me/jesusboy12345

11.It doesnt Extract my bootimg
either your Bootimg has .so files inside that it cant unpacK or you didnt disable antivirus and run as administrator or your boot.img is corrupted

12.Is this opensource
No.

13.How many seconds does it take to unpack
IN pentium 4 it can take 20seconds to unpack

Notes
1.If you Port your Boot.img Your self You are at Your own Risk dont say it unpacked and the app Brick your phone u will hold your self responsible

2.if any issues you can contact the creator above

3.Never flash boot.img in a phone with no baseband/imei etc and Make sure you backup your phone properly

《Phone tested》
1.Xolo q800
2. Xiaomi Redmi note 5
3.Coolpad 7295
4.Spice mi 515
5.Tecno phantom 5
6.Infinix x510
7.coolpad 8297

link to download
https://drive.google.com/open?id=1n8Ik6lDJ22-B903G4tnvgiJ-nBnaUUzx

Credits/Github
1@jesusboy12345 in telegram

2.https://github.com/Waitlan/mkbootimage-and-bootsigner

3.@bcrichster ,@Unforgiven @GameTheory for teaching me how to write thread with Android forums

Paypal link〓 Paypal.me/speedevs

Signature
always on amphetamines turbo power

  • Screenshot (129).png

    64.8 KB

    · Views: 495

Источник


Date
March 23, 2021

Download the latest version of IMG Extractor Tool 2.6.3 (Updated) with the fastest and one-click direct download link, and learn about its uses and features.

  • What is the img extractor tool?
  • How to use the img extractor tool?
  • Images of the img extractor tool.
  • What are the contents of the img extractor tool files?
  • Additional information of the img extractor tool.
  • Download link of img extractor tool.
What is the img extractor tool?

IMG Extractor Tool is a freeware program developed by Mr. Hau, and it’s compatible with Windows operating systems. The previously released name of this tool is MTK Extractor but after version 2.2, the name has been changed to IMG Extractor and the feature of this tool is that it can unpack or repack the system.new.dat, system.img, boot.img, and recovery.img image files. And below is a list of features of this tool.

  • Extract System.new.dat
  • Extract System.img
  • Build System.new.dat
  • Build System.img
  • Unpack Boot.img
  • Repack Boot.img
  • Unpack Recovery.img
  • Repack Recovery.img
How to use the img extractor tool?

To compile or decompile the system, boot, and recovery image files of firmware files, you need to download and extract this tool from the links below and then follow the steps below.

  1. Launch the program setup «MTK Extractor.exe» file as administrator.
  2. Go to the Firmware (for System Files), Boot, or Recovery tab of the file you want to unpack.
  3. Click the «Browse» button and select the image file you want to unpack, and then click the «Start» button.
  4. As soon as you click the «Start» button, the tool will start unpacking the image file and save the unpacked files to the folder where the program is located.
  5. If you want to repack all these unpacked files in the image file, then select the folder where the files are located in the «Repack«/»Build Firmware» Browse option and click on the «Start» button. The tool will start the file repacking process and save the file in the actual folder of the program.

Note: You must ensure that you disable anti-virus and all other virus protection programs from your computer system before extracting the compressed file. Otherwise, the program file will be deleted automatically, or the program will not work properly.

Images of the img extractor tool.

You can see different images of this tool by sliding from the image slider below.

What are the contents of the img extractor tool files?

You can see each file’s contents and its type from the content-box of the following file; in some cases, you have to move the scroll up and down to check all the file names and extensions.

-IMG Extractor V2.6.3
tool
MTK Extractor.exe

-tool
bootimg.exe
cyggcc_s-1.dll
cygpcre-1.dll
cygwin1.dll
cygz.dll
fciv.exe
img2simg.exe
Imgextractor.exe
make_ext4fs.exe
msvcr100.dll
rimg2sdat.exe
sdat2img.exe
simg2img.exe

-IMG Extractor V2.6.2
tool
MTK Extractor.exe

-tool
bootimg.exe
cyggcc_s-1.dll
cygwin1.dll
cygz.dll
Imgextractor.exe
make_ext4fs.exe
msvcr100.dll
python34.dll
rimg2sdat.exe
sdat2img.exe
simg2img.exe
sprs2ext.exe

-IMG Extractor V2.6.1
file_contexts
tool
MTK Extractor.exe

-file_contexts
mt6572
mt6582
mt6592
mt6735
mt6752
mt6753
mt6795
file_contexts

-mt6582
file_contexts

-mt6753
file_contexts

-tool
bootimg.exe
cyggcc_s-1.dll
cygwin1.dll
cygz.dll
Imgextractor.exe
make_ext4fs.exe
msvcr100.dll
python34.dll
rimg2sdat.exe
sdat2img.exe
size.txt

-MTK Extractor V2.2
tool
file_contexts
MTK Extractor.exe
size_input.txt

-tool
cyggcc_s-1.dll
cygwin1.dll
cygz.dll
Imgextractor.exe
make_ext4fs.exe
msvcr100.dll
sdat2img.exe
Additional information of the img extractor tool.

You can find additional information about this tool in the table below. If you believe there is an error in any of the information provided in this post, you can let us know via the contact page or our email address contact.gsmware@gmail.com. We will be grateful to you for that.

Name Information
Program IMG Extractor
Type .EXE (Portable)
Version 2.6.3 (Updated)
Size 9.85 MB
Updated Tuesday, March 23, 2021
Views
Downloads
Price 0$ Free
Developer Mr. Hau
Category Free Tools
Compatibility Windows XP, 7, 8, 10
Password www.gsmware.com

Copy
Download link of img extractor tool.

You can download the compressed RAR file of this tool from the link below and extract it with at least version 5.5 or later of the WinRAR program.

Download old version:

IMG Extractor V2.6.2.rar 13.5 MB
IMG Extractor V2.6.1.rar 10.5 MB
MTK Extractor V2.2.rar 5.15 MB

The default password for compressed files is «

www.gsmware.com

«.

Источник

Понравилась статья? Поделить с друзьями:
0 0 голоса
Рейтинг статьи
Подписаться
Уведомить о
guest

0 комментариев
Старые
Новые Популярные
Межтекстовые Отзывы
Посмотреть все комментарии
  • Iptables просмотр правил windows
  • Не удается установить обновление windows из за ошибки 2147944030
  • Не работают эмуляторы андроид на windows 10
  • Лучший audio плеер для windows 10
  • Как пользоваться rufus на флешку windows 10
